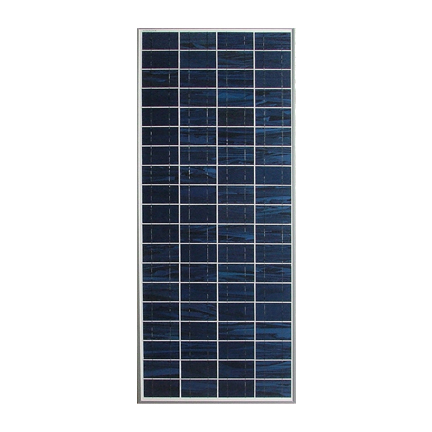

125 Watt Poly Crystal Solar Panels On Sale Now $ 399.00 plus shipping
Specifications
Cell: Polycrystalline silicon solar cells
No. of cells and connections: 36 (4x9)
Dimension of module: 59.06 x 26.46 x 1.57
Weight: 26.62 lbs (12.1 kg)
Characteristics
Open circuit voltage (Voc) 21.6V
Optimum operating voltage (Vmp): 17.2V
Short circuit current (Isc) 8.09
Optimum operating current (Imp): 7.27A
Maximum power at STC (Pm): 125W
Limits
Operating temperature: -40 to +85 C
Maximum system voltage: 1000VDC
Temperature and Coefficients
Nominal Operation Cell Temperature (NOCT): 48 C +- 2 C
Current temperature coefficient %/K: 0.06 +- 0.01
Voltage temperature coefficient mV/K: -(155 +- 10)
Power temperature coefficient %/K: -(0.5 +- 0.05)
Output
Type of output terminal: Only Junction Box - No Cables attached
Performance
High power tolerance (+- 3%)
Nominal 12V
Buy 10 Solar Panels and Save 10% with Free Shipping
